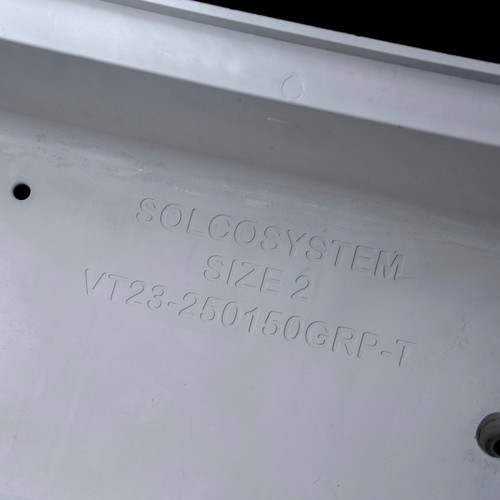

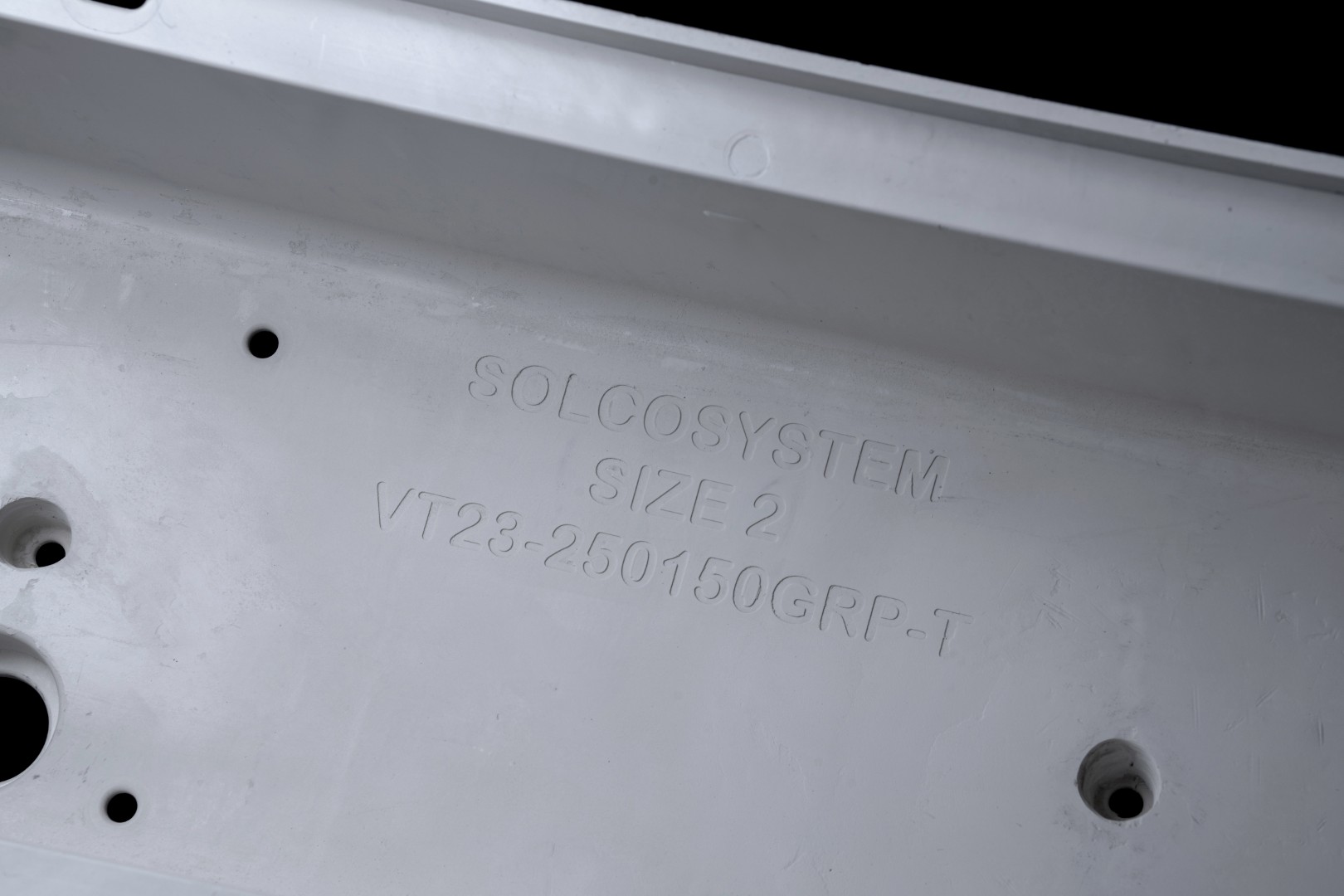

SOLCOSYSTEM Size 2
Buried GRP cable trough

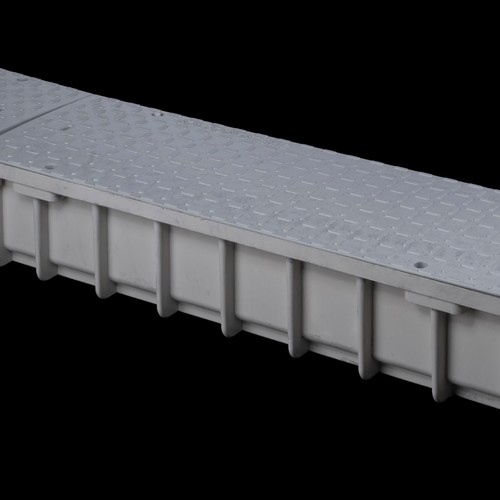

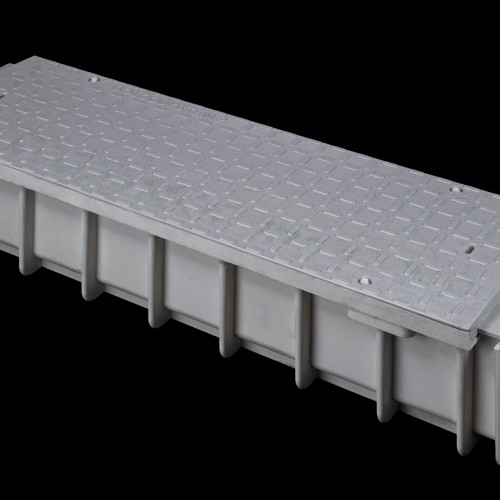

The buried lightweight cable trough (LKT) SOLCOSYSTEM is made of thermoset glass-fibre reinforced plastic (GRP), manufactured by the SMC compression moulding process. Developed in accordance with the DB InfraGO AG specification of 26 May 2025.

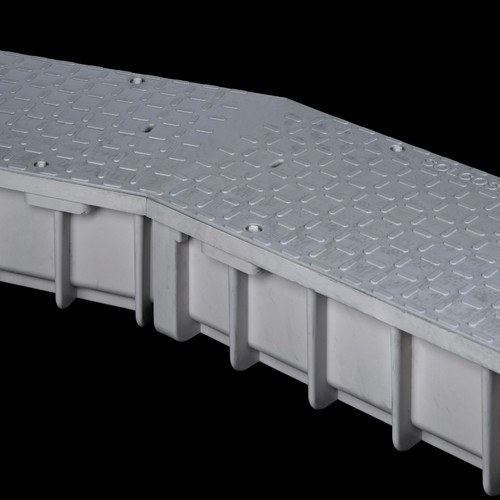

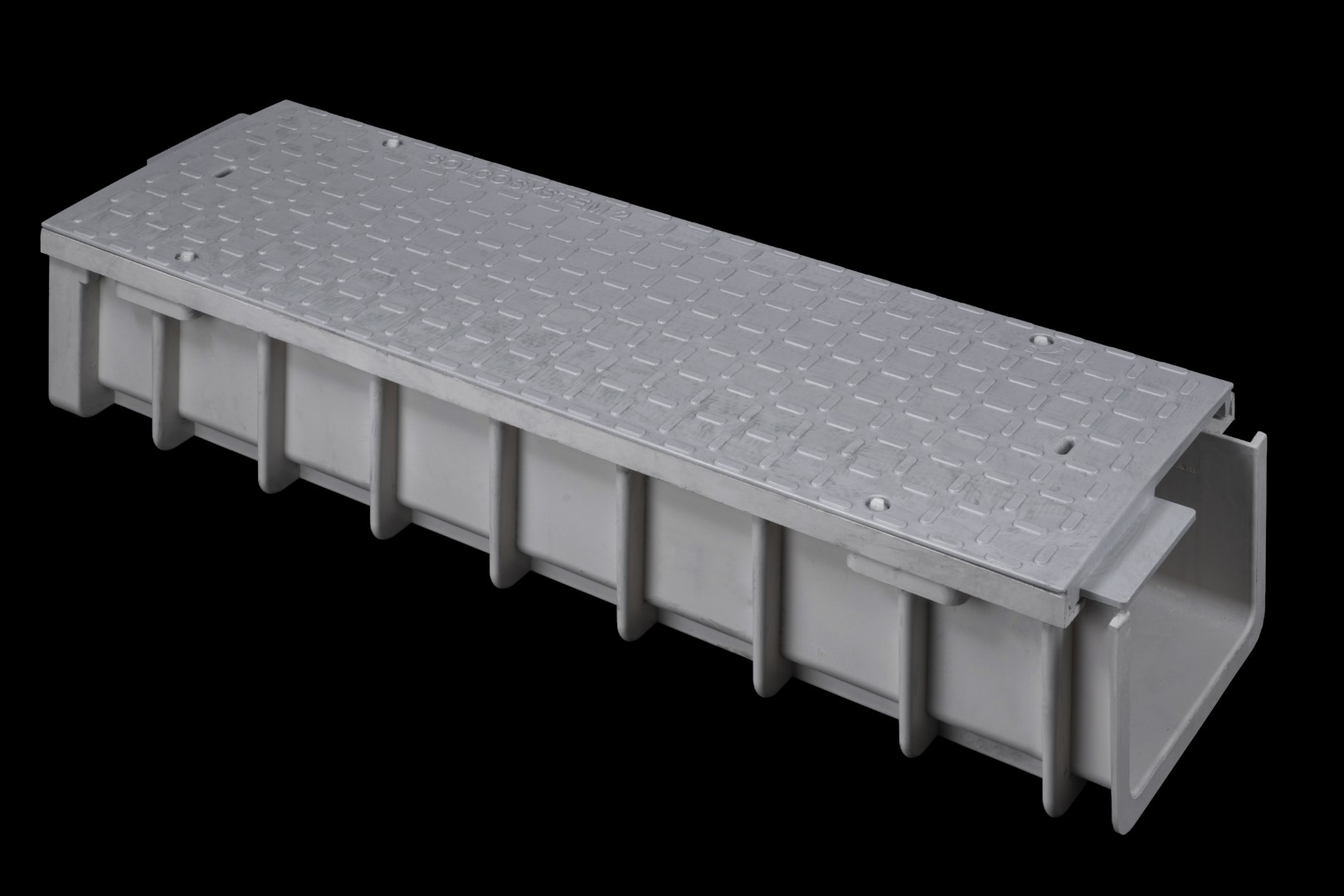

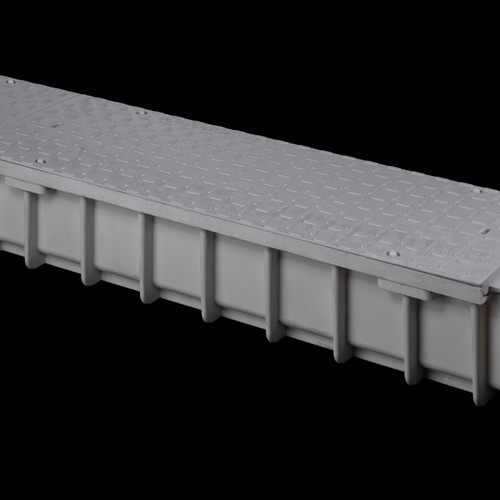

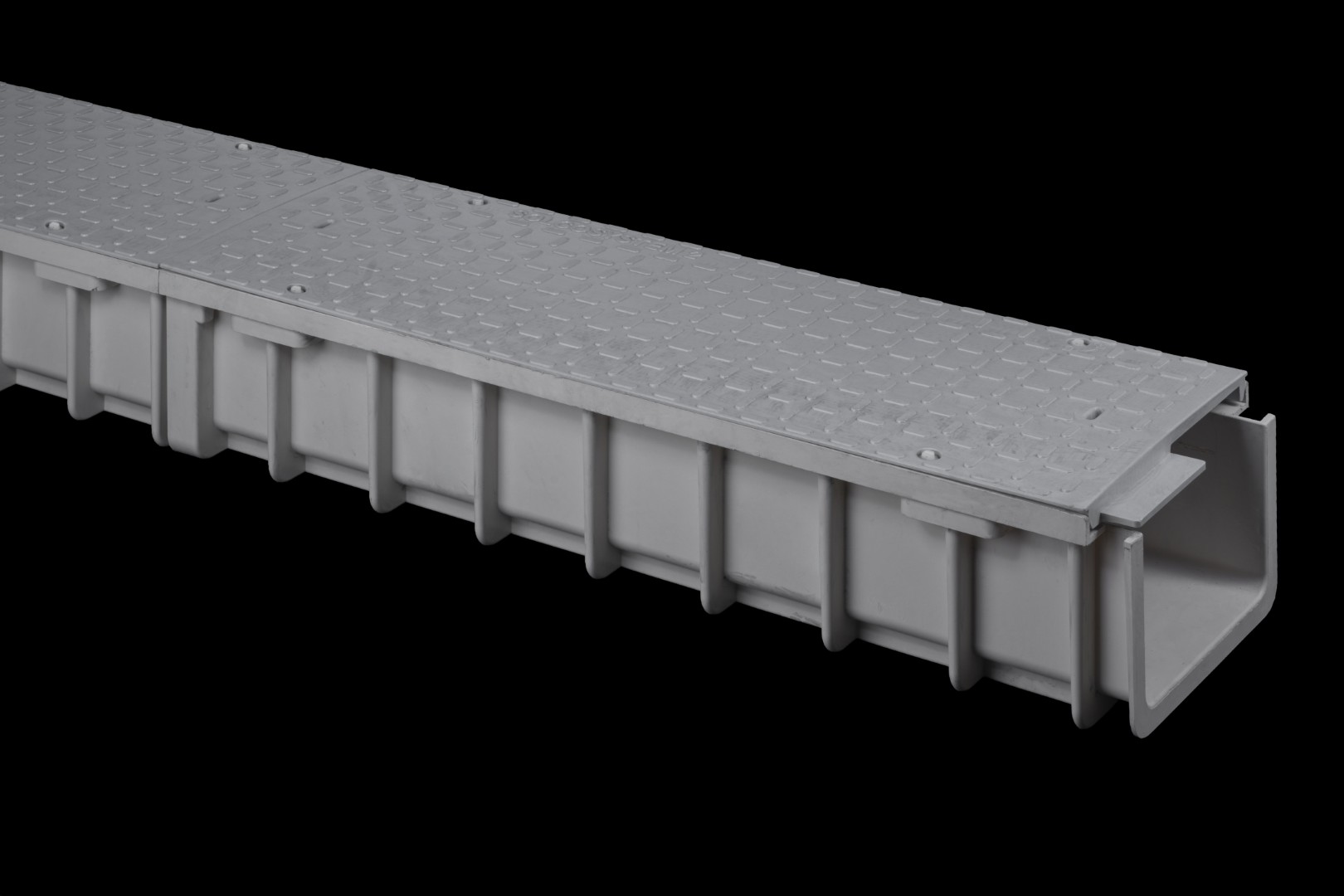

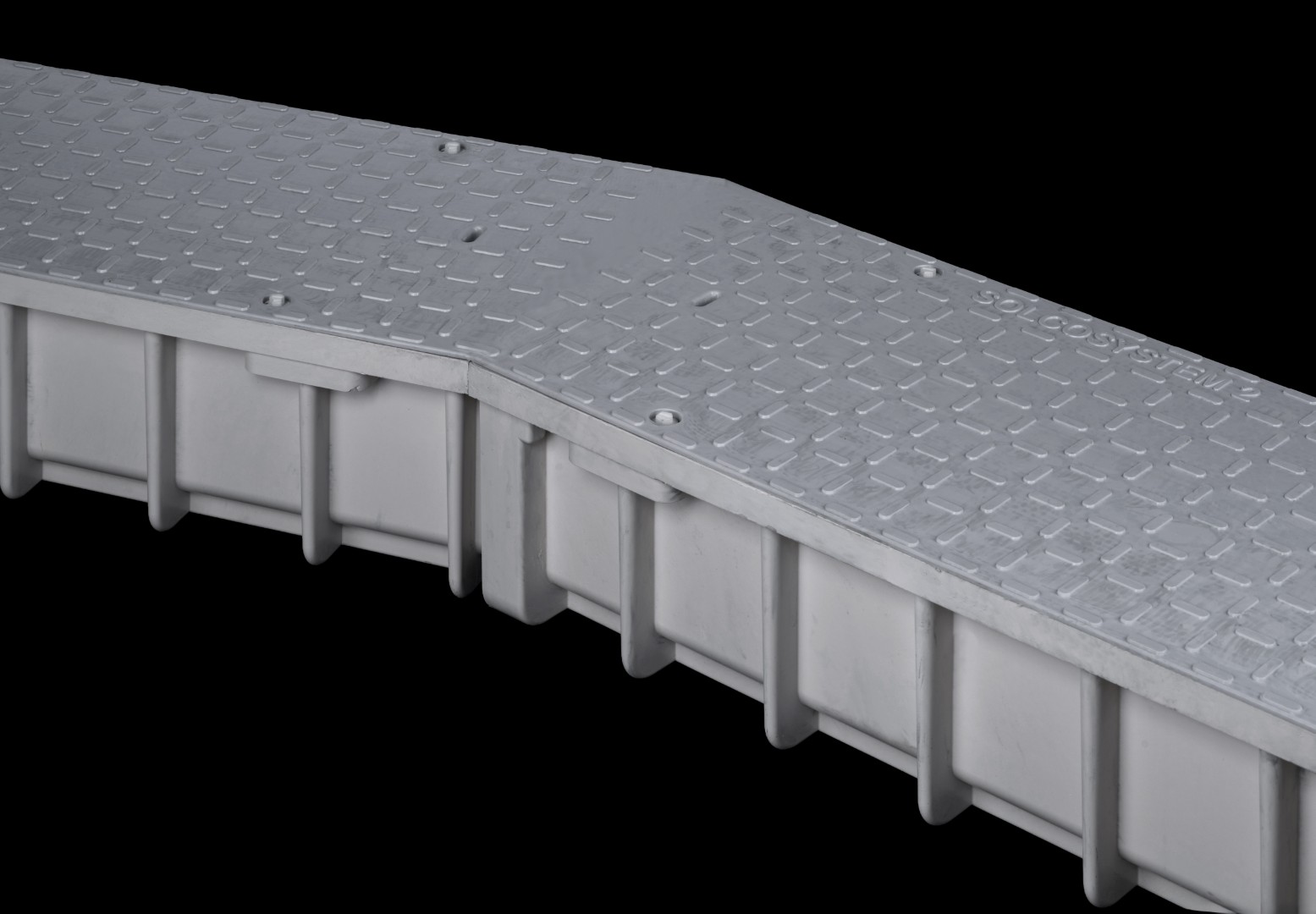

The usable cross-section of Size 2 is 250 × 160 mm. Trough and cover are each 1 metre long and are joined by a tongue-and-groove connection. The cover is lockable; a 30° moulded part is available for routing around obstacles.
Properties:
- Reaction to fire to DIN EN 13501-1: Dfl-s2,d0 and D-s2,d0
- dimensionally stable even under extreme temperature variation
- electrically insulating, good thermal insulation
- corrosion resistant
- substantial weight saving compared with metallic materials

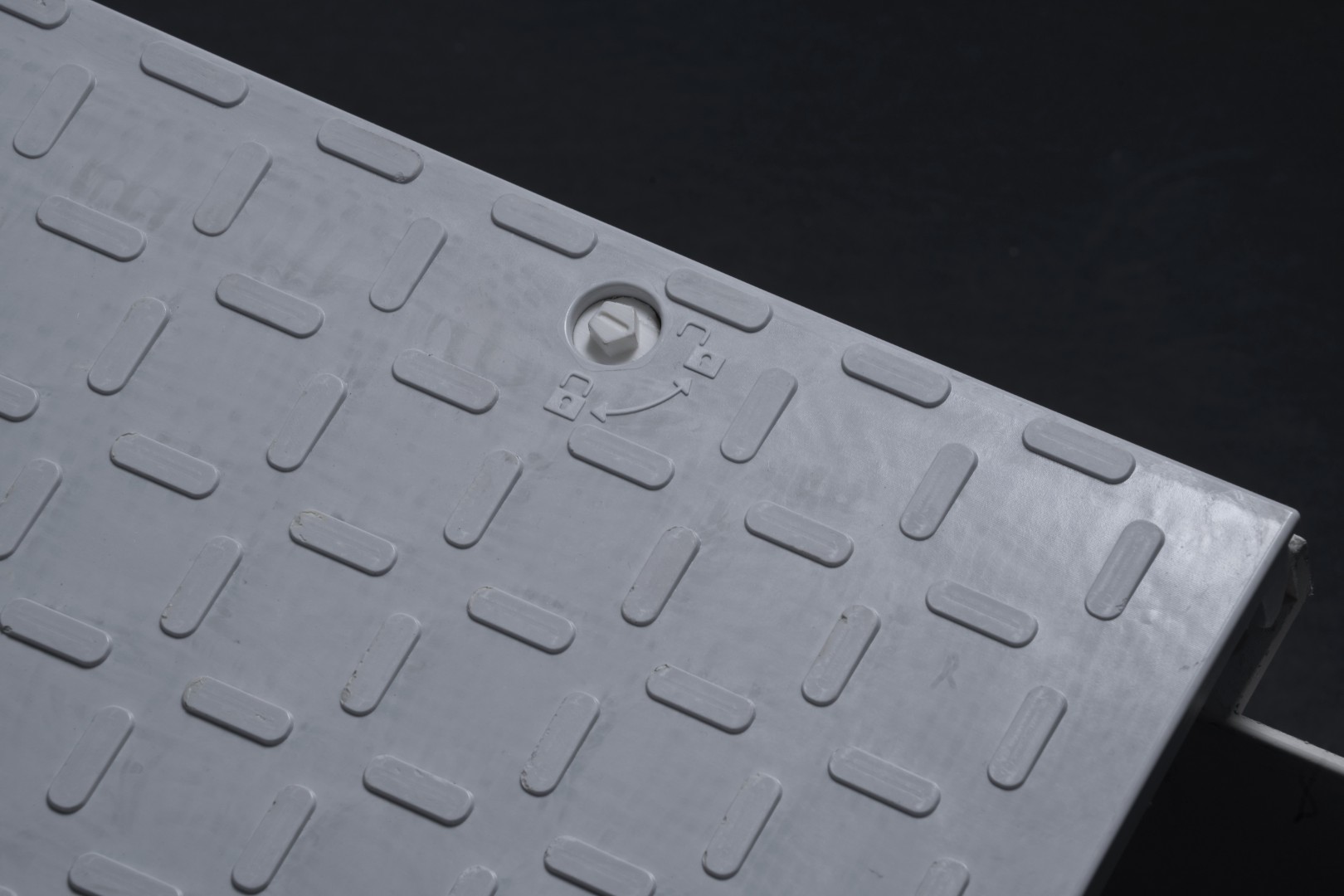

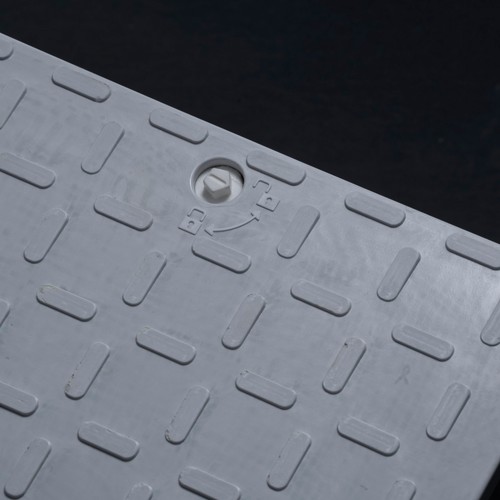

- recessed cover with integrated locking mechanism
- optimal stability against lateral earth pressure
- cover with anti-slip surface, rating R11
- cover load class A15 to DIN EN 124
